UNMANNED GROUND VEHICLE . 500 KG CLASS

ARMADILLO

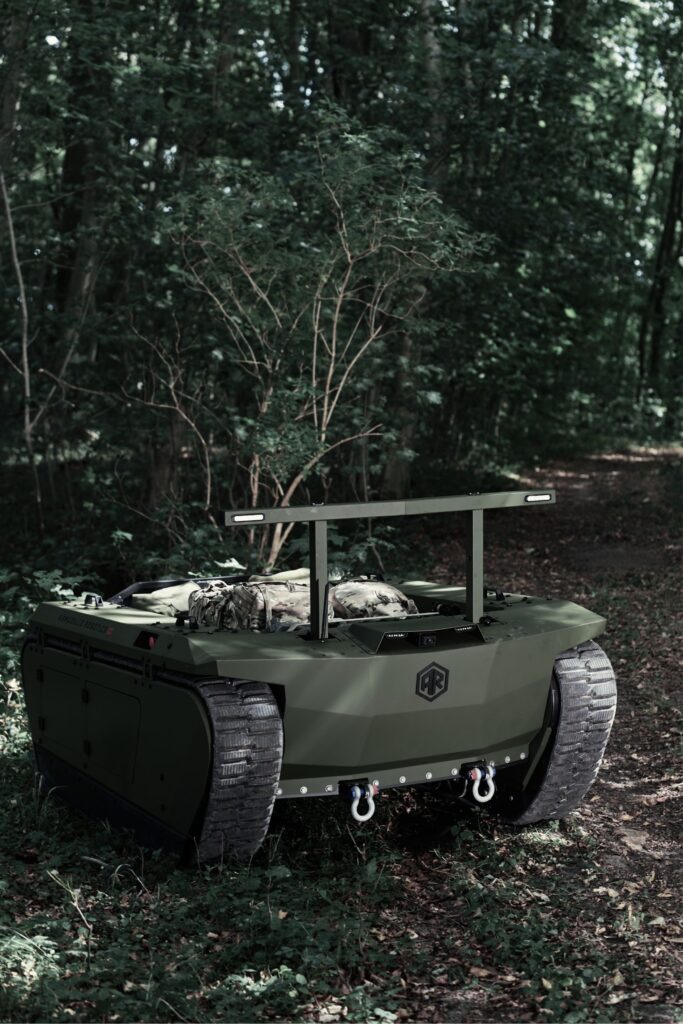

A Danish-designed, modular and autonomous ground vehicle –
built to protect personnel and keep the supply lines moving.

OPERATIONAL
USE

________

Armadillo performs logistics, casualty evacuation and reconnaissance missions on the front line,
reducing the need to expose personnel in high-risk environments.

Lessons learned from Ukraine have demonstrated the operational value of unmanned ground vehicles for transporting supplies, ammunition and equipment, evacuation casualties, and conducting surveillance and reconnaissance.

Armadillo is designed specially for these tasks. It delivers water, ammunition and supplies to forward units, evacuates casualties without exposing personnel, and provides forward observation and situation awareness through integrated sensor systems.

The result is improved force protection, increased operational tempo and enhanced battlefield awareness.

Where conventional military platforms are often complex and costly, Armadillo is built on an industrial principle: affordability, scalability and rapid production. With a 500 kg payload and an open cargo bed optimized for the EUR pallet, the platform integrates directly into existing supply chains – with no special handling required.

TECHNICAL
SPECIFICATION

________

PAYLOAD	500 KG
TOP SPEED	24 KM/H
RANGE	40 KM
CHARGE CAPACITY	8 KW
OPERATING TEMPERATURE	-40 C – +60 C
DIMENSIONS (L ‘ W ‘ H)	1900 x 1650 x 900

download datasheet

ONE PLATFORM.
MANY MISSIONS.

The same base vehicle can be reconfigured between roles in a short time – from pure logistics to evacuation, reconnaissance, or as a carrier for a remote weapons station. One platform covers many needs, reducing both acquisition and training costs.

CARGO & LOGISTICS

______

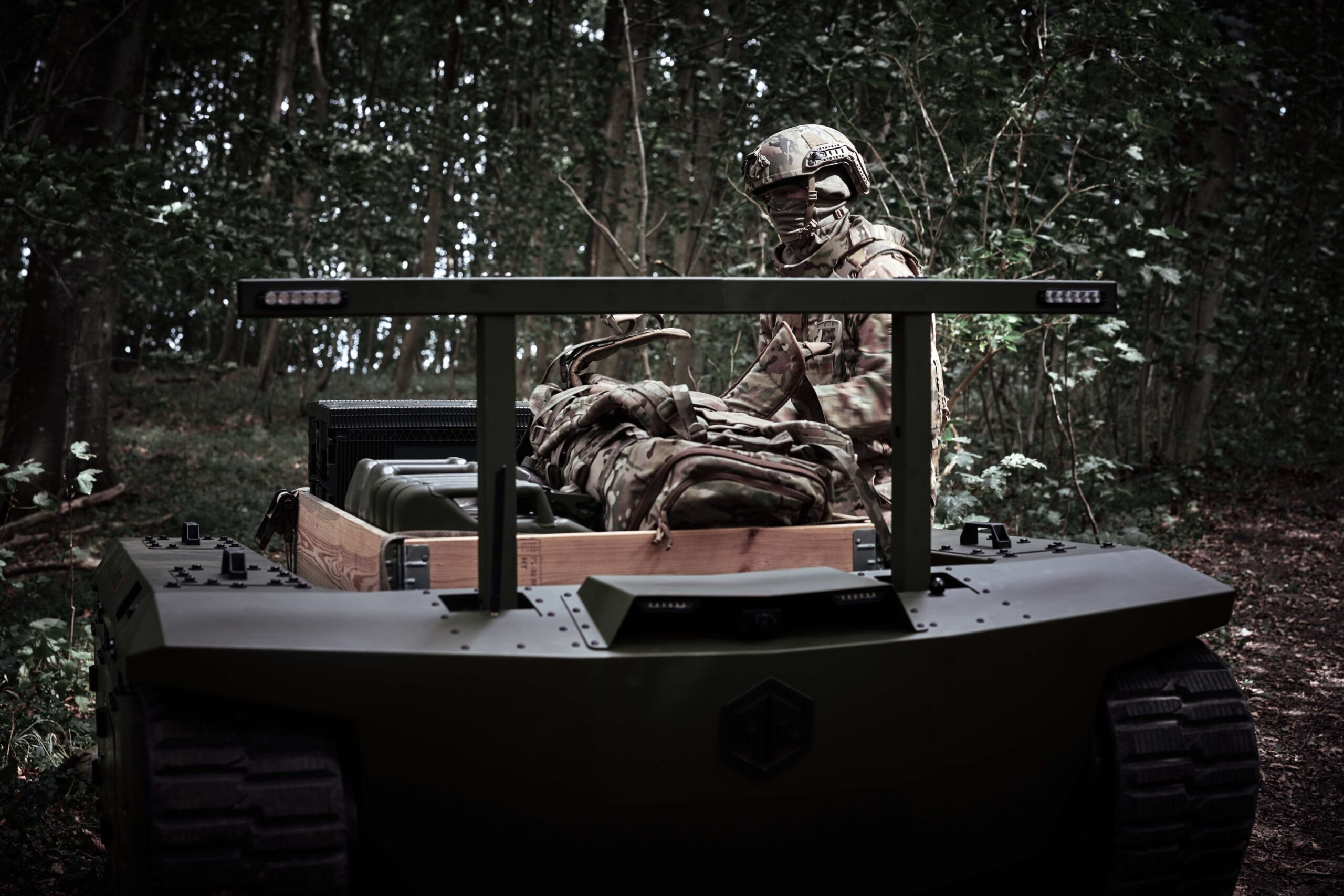

Transport of supplies, ammunition and equipment. A full EUR pallet (500 kg) straight from the supply chain.

MEDEVAC

______

Rapid, remotely operated casualty evacuation via an integrated stretcher system – without exposing medics.

RECONNAISSANCE / ISR

______

3-axis stabilised gimbal with 2K and thermal imaging plus LIDAR-ready provision.

MOBILE WEAPONS PLATFORM

______

Prepared as a carrier for a remote weapons station for direct fire support of infantry.

TEST PROVEN. MISSION READY.

PLATFORM,
ORIGIN &
CERTIFICATION

________

Danish Designed & Manufactured

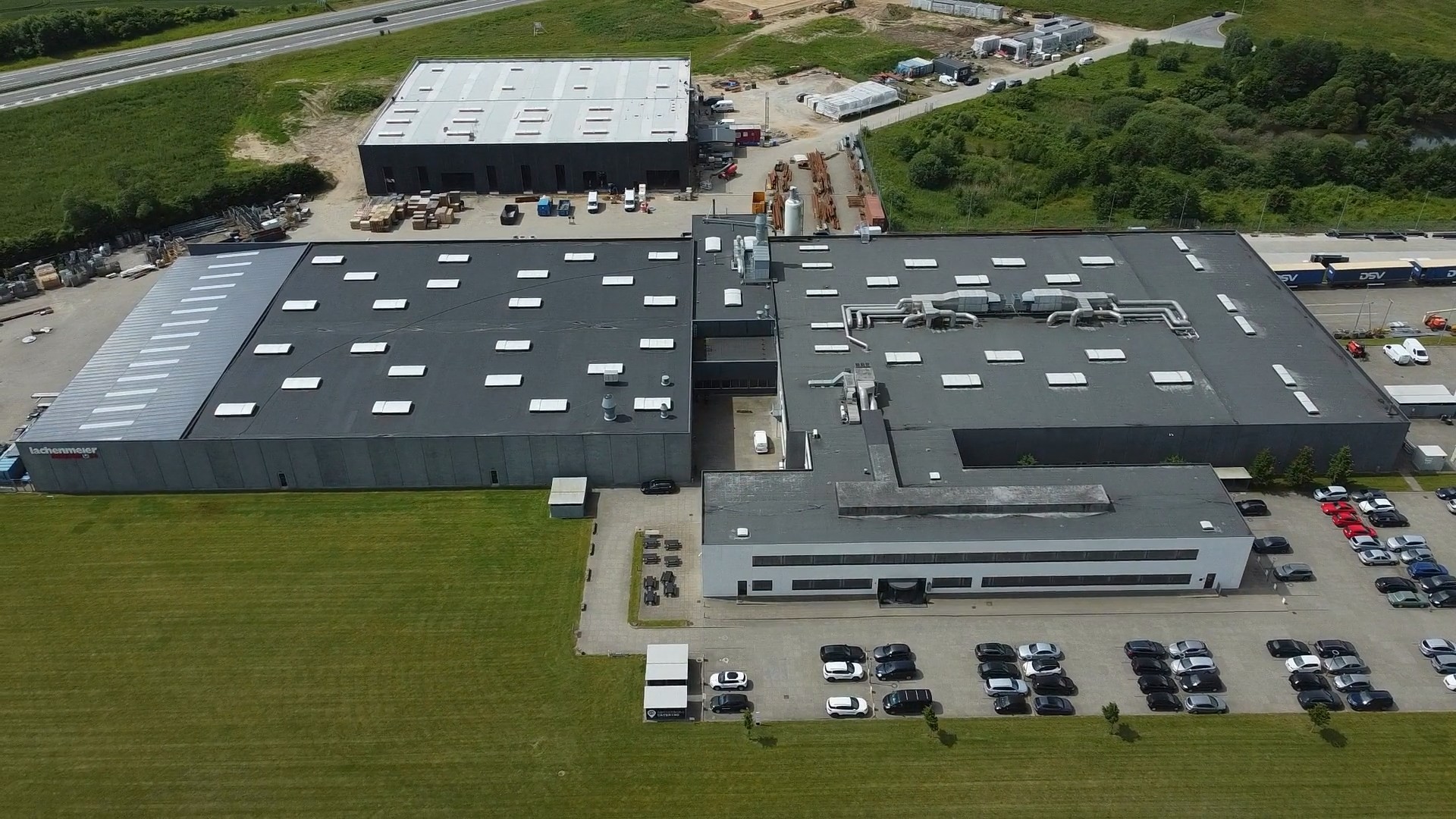

Own factory in Sønderborg. Short supply lines and full control of quality and delivery.
Industrial Off-the-Shelf Components
Instead of expensive bespoke parts – enables mass production and a low unit cost. Accept that some units are expended in combat.
User-Driven Development
The platform is shaped together with end users and PTD based on real operational requirements.
Modular from the Ground Up

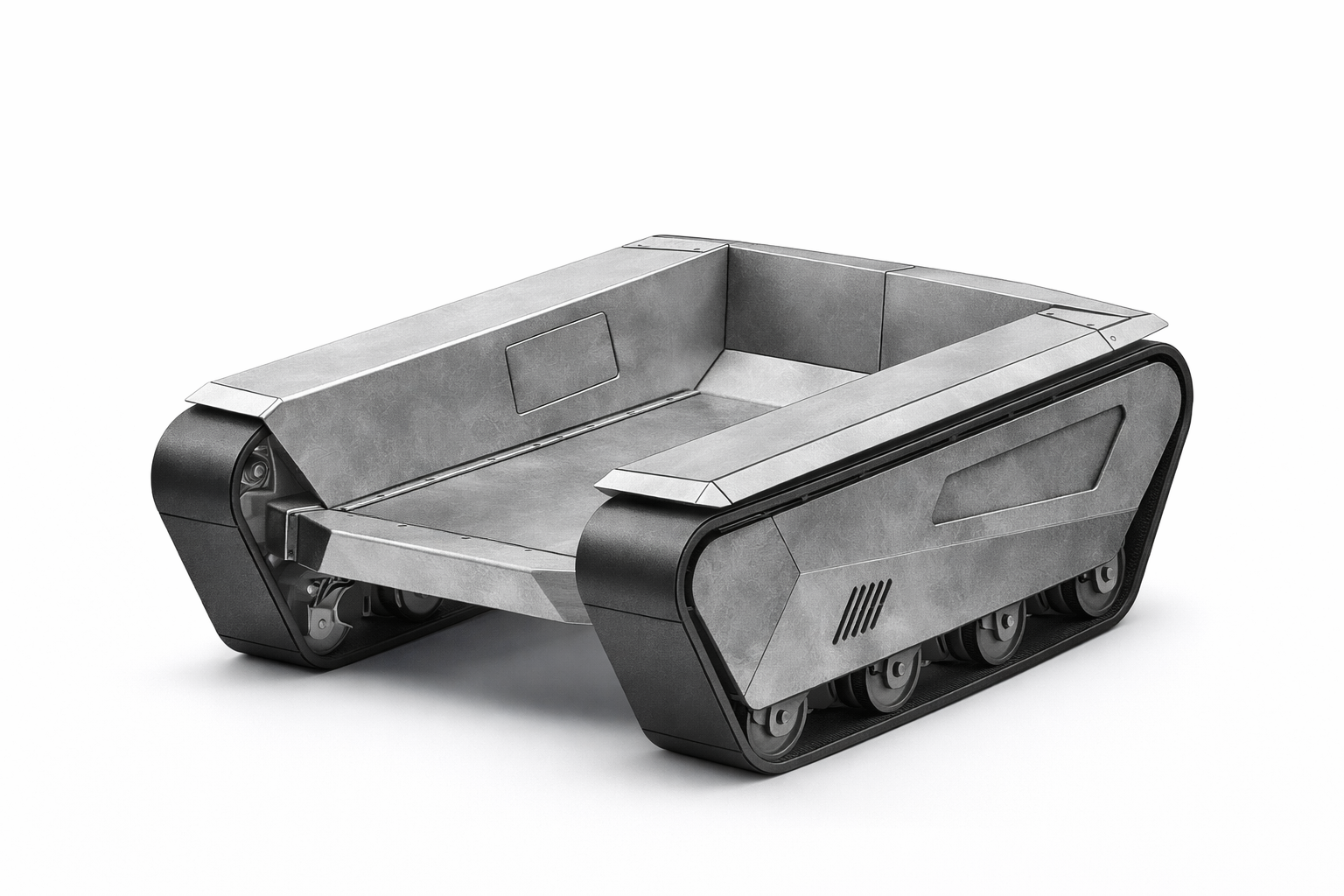

Extremely rigid 5 mm Hardox steel chassis with double floor for battery and electronics. Open cargo bed with standardised mounting ralls.

CERTIFICATIONS

ISO 9001:2015
CE Marking

DIN 3834 (Welding)
STANAG 4569 (ready)

ABOUT
ARMADILLO
ROBOTICS

________

Armadillo Robotics A/S is a Danish engineering and manufacturing company headquartered in Sønderborg, Denmark. We develop and produce autonomous unmanned ground vehicles (UGVs) for military logistics, casualty evacuation and reconnaissance missions, designed to operate where it is too dangerous to send personnel.

Our approach is built on practical engineering, robust design and proven industrial components. Working closely with end users and defence organisations, we develop platforms that are reliable, scalable and efficient to manufacture, without compromising operational performance.

Armadillo is designed and manufactured in Denmark at our own production facility, providing full control over engineering, quality, production and delivery. Backed by more than 70 years of engineering and manufacturing experience, we combine industrial production capability with modern autonomous systems to meet evolving operational requirements.

The platform is designed for continuous innovation and development. Our product roadmap includes an Arctic low-temperature variant rated for operations down to −40°C, a hybrid version with extended range, and solutions for self-loading of pallets and recovery of disabled UGVs. Together, these developments provide a scalable platform architecture that can adapt to future missions and operational demands.

download product brochure
